Uncoiler machine make material straightening

FOB Reference Price:Get Latest Price
$50,000.00 - $110,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
RUIHUI
Model Number:
MAC1-800
Condition:
New
Material width:
50~800mm
material thickness:
0.2~3.0mm
coil weight:
5000kg
work roll number:
Upper 4 /down 3
Feed roll number:
1
Material:
metal
Main Motor:
AC4.4
Name:
straightener feeder
keword:
automatic machine
color:
customized
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box & Vacuum packing
Port
Shenzhen/Shanghai/Ningbo
Lead Time :
45~75 days for production
Product Description
Specifications
Model
MAC1-300
MAC1-400
MAC1-800
Stock Width(mm)
50-300
50-400
50-800
Stock Thickness(mm)
0.2-3.0
0.2-3.0
0.2-3.0
Max.Coil Weight(kg)
3000
3000
3000
Max.Coil O.D.(mm)
1200
1200
1200
Coil I.D.(mm)
508
508
508
Feed Length(mm)
~400*
~400*
~400*
Max. Line Speed(m/min)
16-24
16-24
16-24
Work Roll Number(pieces)
upper 4/ lower 3
upper 4/ lower 3
upper 4/ lower 3
Feed Roll Number(set)
1
1
1
Main Motor
AC2.0
AC2.0
AC4.4
Mandrel Expansion
hydraulic
hydraulic
hydraulic
Unoiler Motor(kw)
1.5
1.5
1.5
Power(V)
3 Phase 220V/380V/50HZ
Operating Air(Mpa)
0.49
0.49
0.49
Straigtening performance
Model
MAC1-300
MAC1-400
MAC1-800








Stock Thickness(mm)
0.2





300




400




800
0.4
0.6
0.8
1.0
1.2
1.4
300
700
1.6
250
250
550
2.0
190
190
430
2.3
160
160
160
3.0
100
100
100

*1.(Pneumatic):Option in case of pneumatic mandrel expansion is provided,refer to coil weight.
*2.Optional equipment ,in case of pneumatic mandrel expansion is provided,refer to coil weight.

Certifications

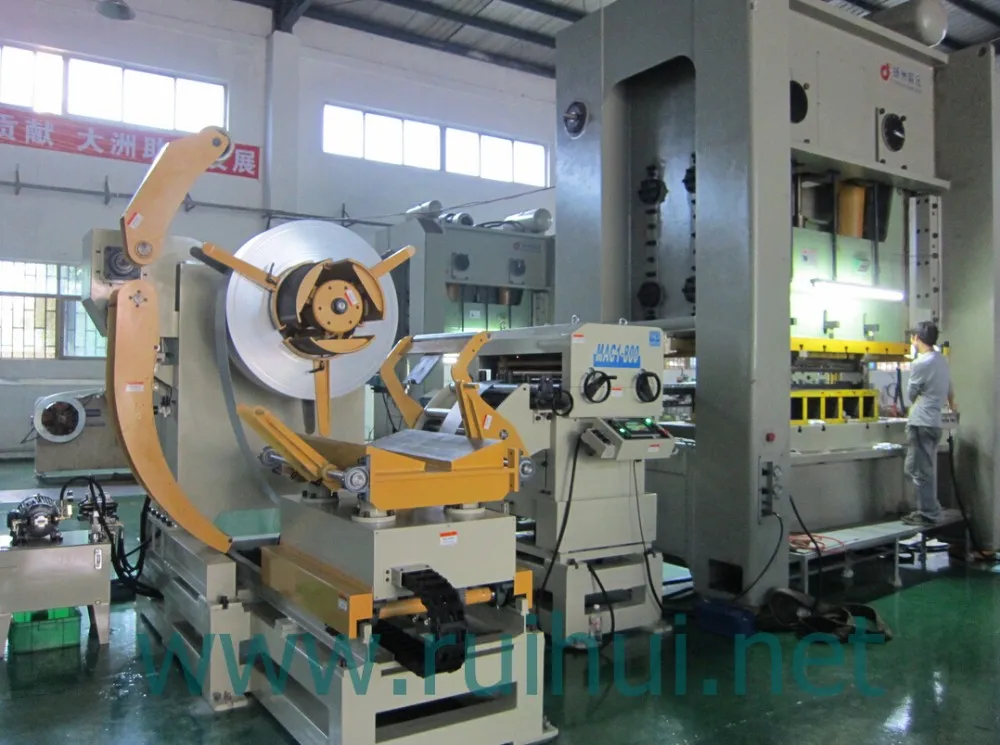

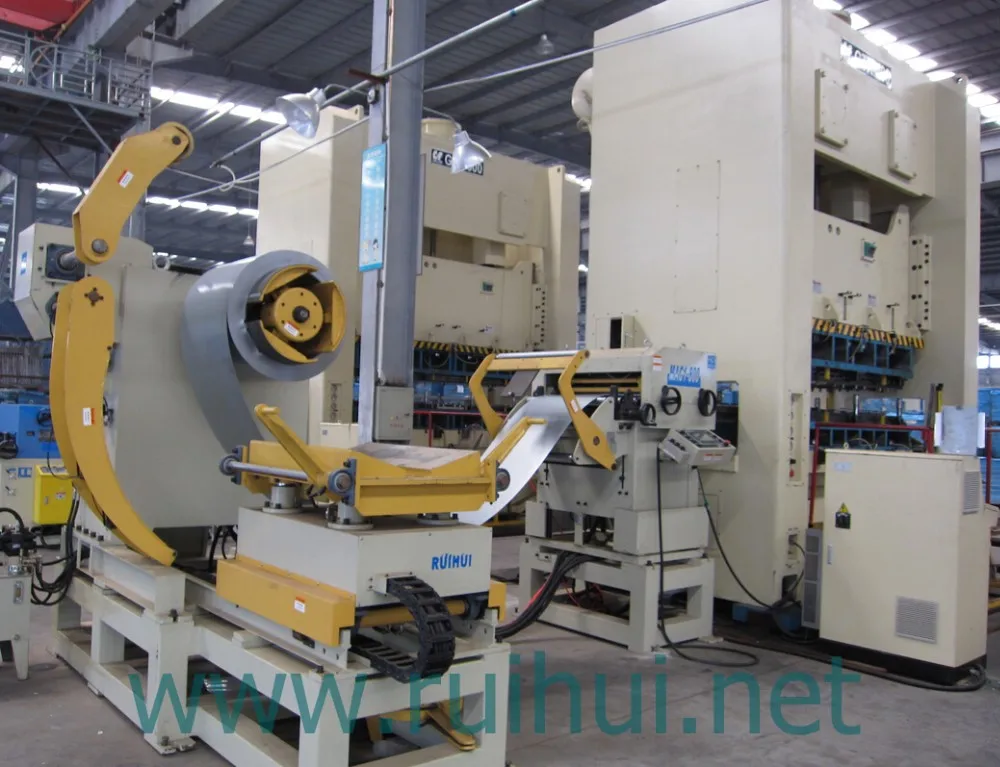

Detailed Images

High Degree of Flatness

Combining the power of the hcavy duty HL unit with the straightening performance of 11work rolls ( 6 upper and 5 lower ), the HL unit gives material a high degree of flatness to the materials from up to 6.0mm thick

Geared Motor with Inverter Control

Geared Motor with Inverter Control allows the feed speed to change easily, a direct drive mechanism without a chain and precision gear has been adopted. These features create maximum smoothness of the work roll movement producing a precise end product.

Our Service

Pre-Sales Service

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;

After-Sales Service

4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.

Packing & Delivery
Company profile

RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

Customer case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
