RGL Series compare thin 2 in 1 rack straightener

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
RGL-300
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
conveying speed (Min. Order: 1 Pieces)
inner diameter (Min. Order: 1 Pieces)

More

outer diameter (Min. Order: 1 Pieces)
material thickness (Min. Order: 1 Pieces)
Material width (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Uncoiling Machine
Use:
Sheet
Place of Origin:
Guangdong, China
Brand Name:
RUIHUI
Voltage:
380V 50Hz or customized
Power(W):
1.5KW
Dimension(L*W*H):
2100*1100*1400
Weight:
1-2T
Certification:
CE ISO
Warranty:
1 Year
Material width:
300mm
material thickness:
0.3~3.2mm
coil weight:
1000kg
work roll number:
Upper 3 /down 4
Material:
metal
Power:
380V/50HZ
Name:
straightener feeder
keyword:
straightening machine
color:
customized
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box & Vacuum packing
Port
Shenzhen/Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

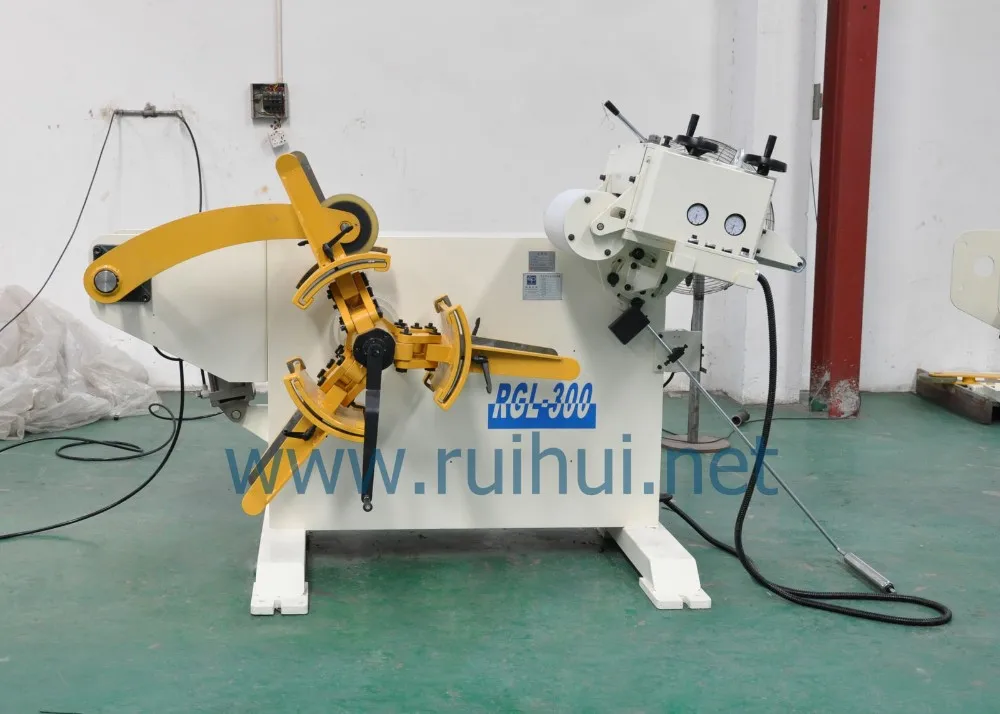

By combining the uncoiler and straightener,we have succeeded in creating this new space saving model.The position of straightener is easily changeable for more flexible machine layout.

Specification
Model
RGL-200
RGL-300
RGL-400
RGL-500
RGL-600
Width of Material(mm)
200
300
400
500
600
Thickness of  Material (mm)
0.3~3.2
Line Speed(m/min)
16
Straigtener Roll(Qty)
Top 3 /Bottom 4 (4 Bottom Rolls have Drive Function)
Pinch Roll(Inlet/Outlet)(Qty)
Inlet:2      Outlet:2
Max.Meterial Weight(kg)
1000
1000
1500
2000
2000
Extent Expansion(mm)
460~520
Coil O.D.(mm)
1200
1200
1200
1200
1200
Main Motor
1
2
2
3
3
Mandrel Expansion
Manual
Power Supply
3 Phase 220V/380V/50HZ
Certifications
Detailed Images

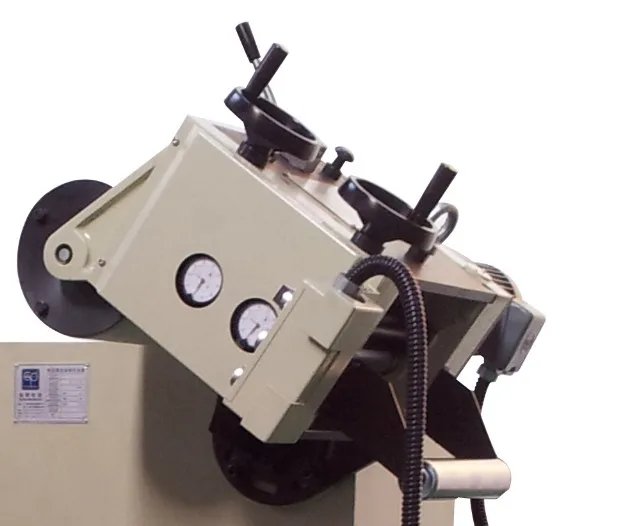

Straightening strength adjust by Dial indicator

It make the straightening strength accuracy more accurate.

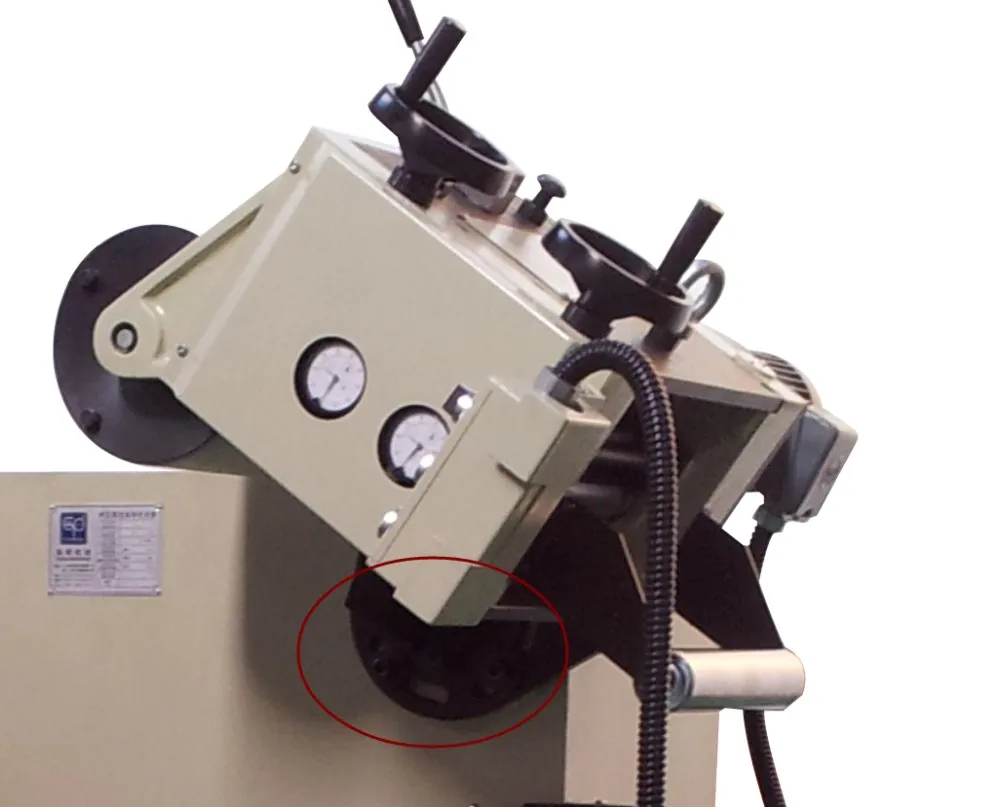

Straightening device adjust by 360°

Straightening device can adjust according to material thickness.

Our Service

Pre-Sales Service

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;

After-Sales Service

4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.

Packing & Delivery
Company profile

RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

Customer case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
