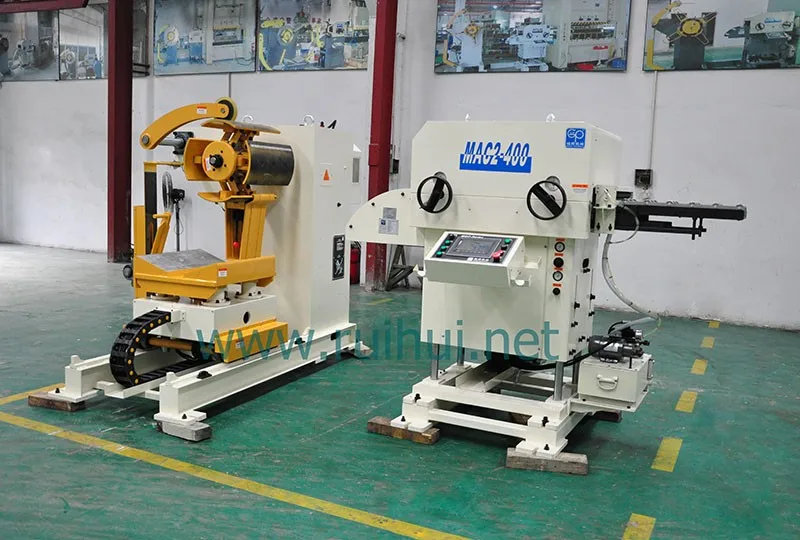

Coil Sheet Automatic Feeder with Straightener use in Press Machine to make parts of Household Appliances Manufacturers

FOB Reference Price:Get Latest Price
$30,000.00 - $100,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Straightener Feeder & Uncoiler
Use:
Sheet
Place of Origin:
Guangdong, China
Brand Name:
RUIHUI
Model Number:
MAC2-400
Voltage:
380V 50Hz
Power(W):
2.9KW
Dimension(L*W*H):
1400*1800*1700
Weight:
1.5-11T
Certification:
CE ISO
Material width:
50-400mm
material thickness:
0.3-3.2mm
coil weight:
3000kg
work roll number:
upper 6/lower 5
Feed roll number:
1
Material:
metal
Power:
380V/50HZ
Name:
straightener feeder
keword:
automatic machine
color:
customized
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
25 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box & Vacuum packing
Port
Shenzhen/Shanghai/Ningbo
Lead Time :
45~75 days for production
Product Description


1). Uses 11 leveling roller, effectively improve the leveling precision materials.
2). The mechanical structure of innovation, so that the whole machine working space contracted to the minimum required.
3). Operation panel with color LCD display, touch screen size, high clear operation picture, coordination operational safety protection system, even if is the primary user can also operate relieved.
4). The system user-friendly design operating sound, preparatory work reduction. Advanced automatic diagnosis system, assists the operator to control this aircraft's remarkable performance quickly.
5). Using Japanese servo motor, to ensure the high precision feeding.
6). Feeding roller and leveling roller through a special heat treatment, high hardness, wear-resistant, long life.
7). The design concept of safety factor is enhanced, makes the equipment safety using time.
8). Machine color (Customized): subject-- Milk white Y11;Warning-- Orange red(RAL2001)

SPECIFICATIONS
Model
MAC2-400
MAC2-600
MAC2-800
Stock Width(mm)
50-400
50-600
50-800
Stock Thickness(mm)
0.3-3.2
0.3-3.2
-3.2
Max.Coil Weight(kg)
3000
3000
5000
Max.Coil O.D.(mm)
1200
1200

Coil I.D.(mm)
8
508
508
Feed Length(mm)
~500*
~500*
~500*
Max. Line Speed(m/min)
16-24
16-24
16-24
Work Roll Number(pieces)
upper 6 lower 5
upper 6 lower 5
upper 6 lower 5
Feed Roll Number(set)
1
1
1
Main Motor(kw)
AC2.9
AC4.4
AC4.4
Mandrel Expansion
hydraulic
hydraulic
hydraulic
Reel Motor(kw)
1.5
1.5
2.2
Power(V)
3 Phase 220V/380V/50HZ
Operating Air(Mpa)
0.49
0.49
0.49
Straightening Performance
Model/Stock Width(mm)
MAC2-400
MAC2-600
MAC2-800











Stock Thicknees (mm)
0.3







400





600




800
0.4
0.6
0.8
1.0
1.2
1.4
1.6
470
470
1.8
400
400
2.0
360
360
2.3
300
300
300
2.5
230
230
230
2.8
150
150
150
3.2
110
110
110

Main Features

1). Uses 11 leveling roller, effectively improve the leveling precision materials.
2). The mechanical structure of innovation, so that the whole machine working space contracted to the minimum required.
3). Operation panel with color LCD display, touch screen size, high clear operation picture, coordination operational safety protection system, even if is the primary user can also operate relieved.
4). The system user-friendly design operating sound, preparatory work reduction. Advanced automatic diagnosis system, assists the operator to control this aircraft's remarkable performance quickly.
5). Using Japanese servo motor, to ensure the high precision feeding.
6). Feeding roller and leveling roller through a special heat treatment, high hardness, wear-resistant, long life.
7). The design concept of safety factor is enhanced, makes the equipment safety using time.
8). Machine color (Customized): subject-- Milk white Y11;Warning-- Orange red(RAL2001)

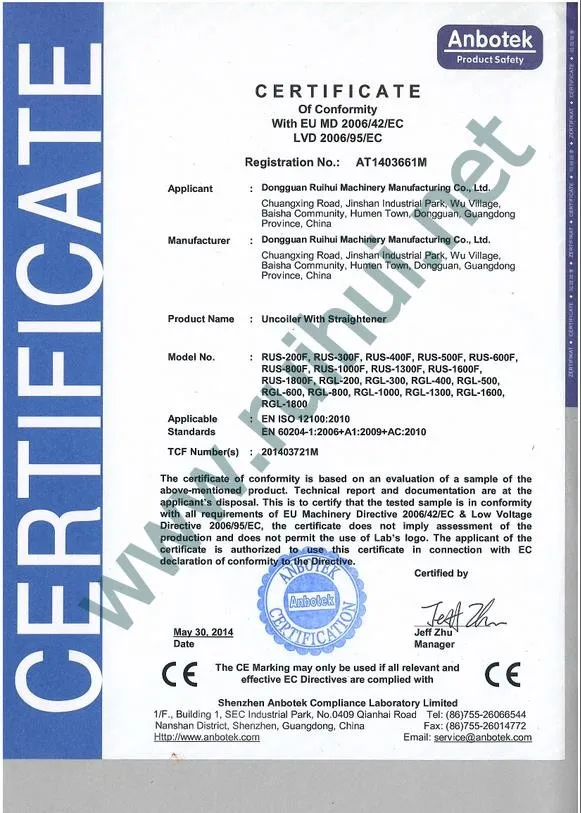

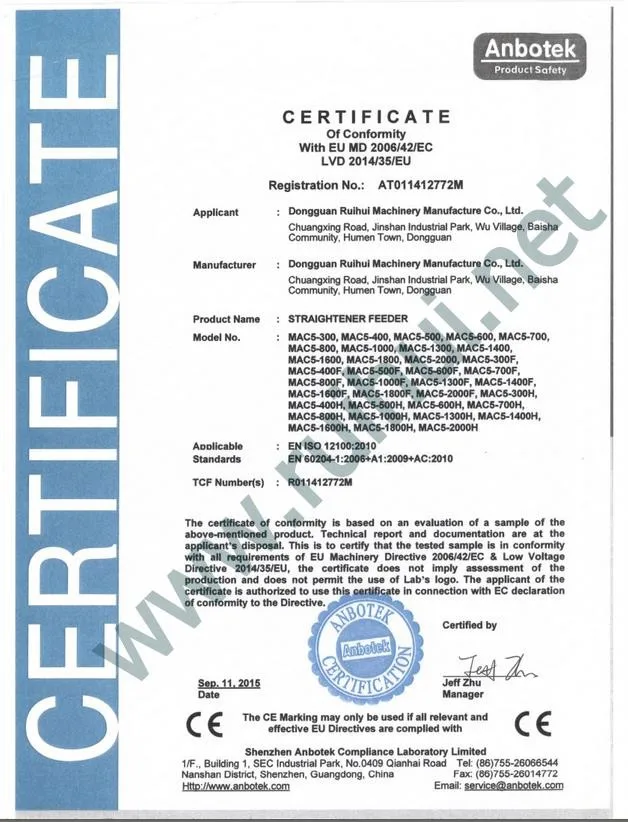

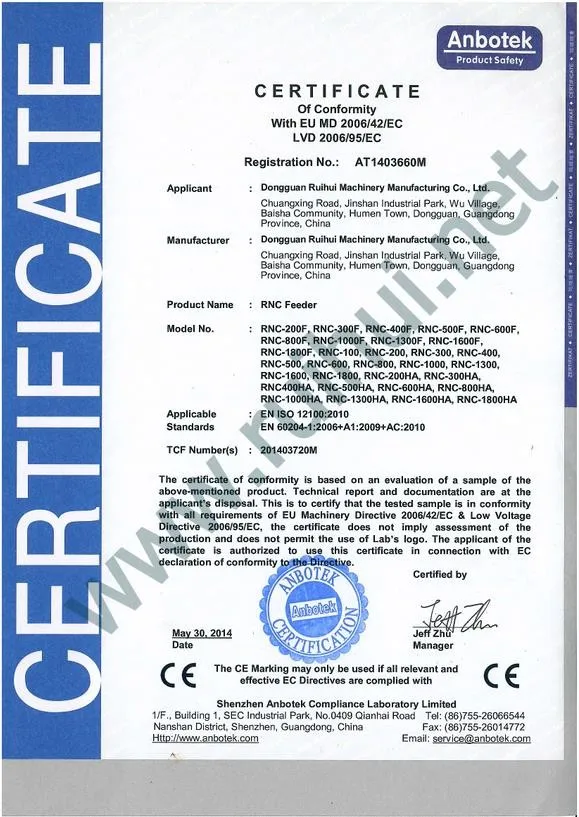

Certifications
Detailed Images

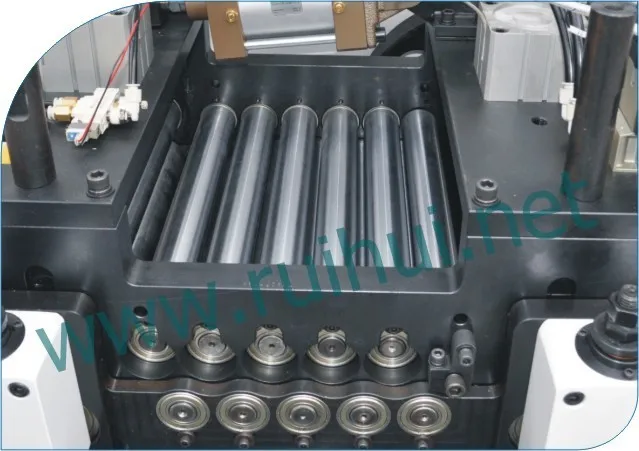

High Degree of Flatness

Combining the power of the hcavy duty HL unit with the straightening performance of 11work rolls ( 6 upper and 5 lower ), the HL unit gives material a high degree of flatness to the materials from up to 6.0mm thick

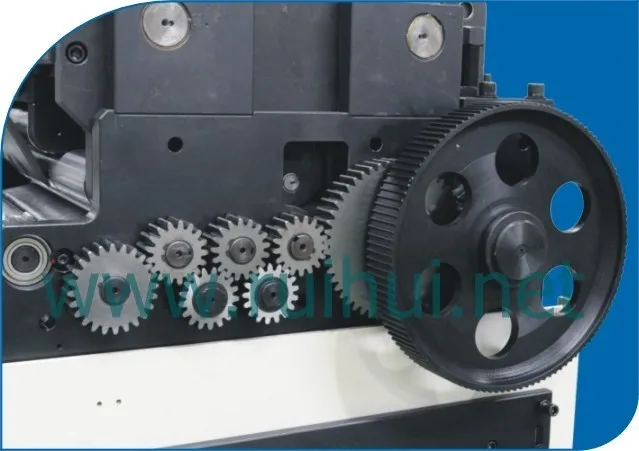

Geared Motor with Inverter Control

Geared Motor with Inverter Control allows the feed speed to change easily, a direct drive mechanism without a chain and precision gear has been adopted. These features create maximum smoothness of the work roll movement producing a precise end product.

Our Service

Pre-Sales Service

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;

After-Sales Service

4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.

Packing & Delivery
Our Company

RUIHUI

Founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Customer Case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.
Other household appliances manufacturers; such as Gree, Haier, Midea, Chigo Air conditioning.
Hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

Why choose us

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
