Motor Drive Uncoiler Machine For Car Parts Producing Line

FOB Reference Price:Get Latest Price
$30,000.00 - $80,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
RUIHUI
Model Number:
MAC1-300
Condition:
New
Stock Width(mm:
50~500
Stock Thickness(mm):
0.2~3.0
Line Speed(M/Min):
16~24
Coil Weight(Kg):
3000
Work Roll Number:
upper 4/down 3
Feed Roll Number(pcs):
2
Main Motor:
AC2.0
Mandrel Expansion:
By manual(pneumatic)/hydraulic
color:
customized
Power(V):
3Phase 220V/380V/50HZ
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box & Vacuum packing
Port
Shenzhen/Shanghai/Ningbo
Lead Time :
45~75 days for production
Product Description

Product Application

Coil Side Guides

Material width adjustment gear wheel device has unique design,providing the operator mare secure,efficient,simple feeding setting adjustment

Large straightening roll adjustment hand wheels has been adopted.Symbols are used for the indicators,improving repeatability and permitting easy numerical control setting.

Specification
Model
MAC1-300
MAC1-400
Stock Width(mm)
50-300
50-400
Stock Thickness(mm)
0.3-3.0
0.3-3.0
Max.Coil Weight(kg)
3000
3000
Max.Coil O.D.(mm)
Φ1200
Φ1200
Coil I.D.(mm)
Φ508
Φ508
Feed Length(mm)
~400*
~400*
Max.Line Speed(m/min)
16-24
16-24
Work Roll Number(piece)
uppper4 / lower3
uppper4 / lower3
Feed Roll number(pcs)
2
2
Main Motor
AC2.0
AC2.0
Mandrel Expansion
By manual(pneumatic)hydraulic
By manual(pneumatic)hydraulic
Reel Motor(kw)
1.5
1.5
Power(V)
3Phase 220V/380V/50HZ
Operating Air(Mpa)
0.49
0.49
Straightening Performance
Stock Thickness(mm)
Stock Width(mm)
0.2





300




400
0.4
0.6
0.8
1.0
1.2
1.4
300
1.6
250
250
2.0
190
190
2.3
160
160
3.0
100
100

*The above flgures are the material having yield strength of 245N/mm2 max.

(tensile strength of 392N/mm²)
Certifications

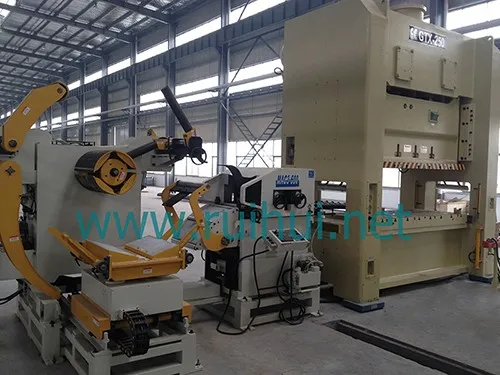

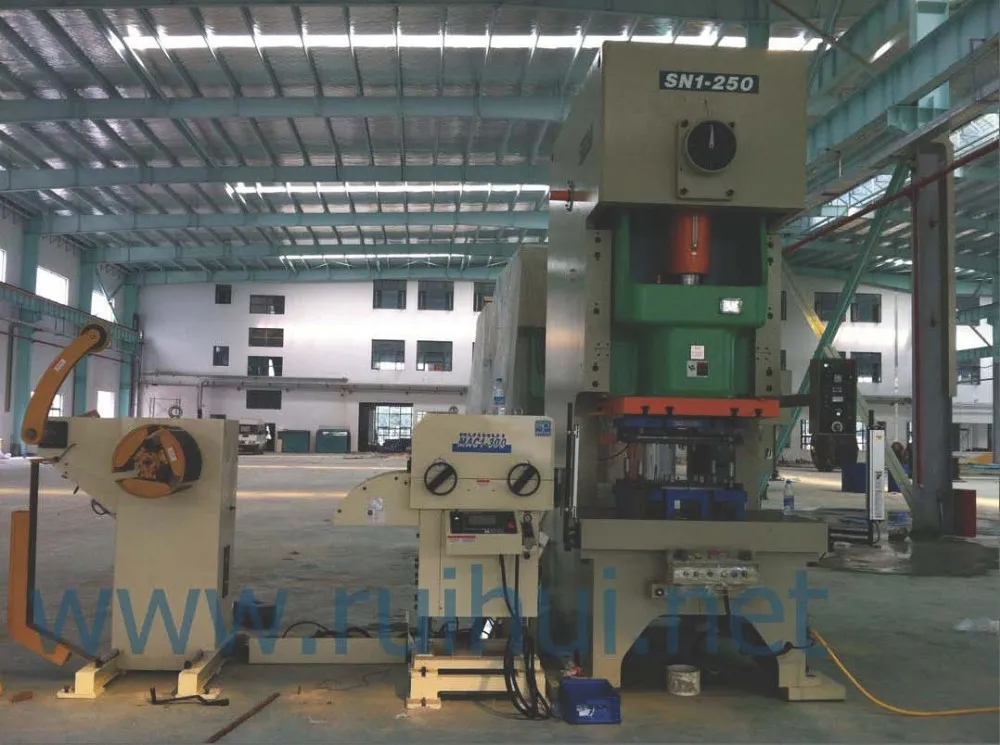

Detailed Images

Machine Parts

Name:Straightener port opening mechanism

                 (Alligator Head/optional)

Brand:RUIHUI

Original:China dongguan

Maintenance and roll cleaning is made easy by an opening at the top of the straightener.

Main Features

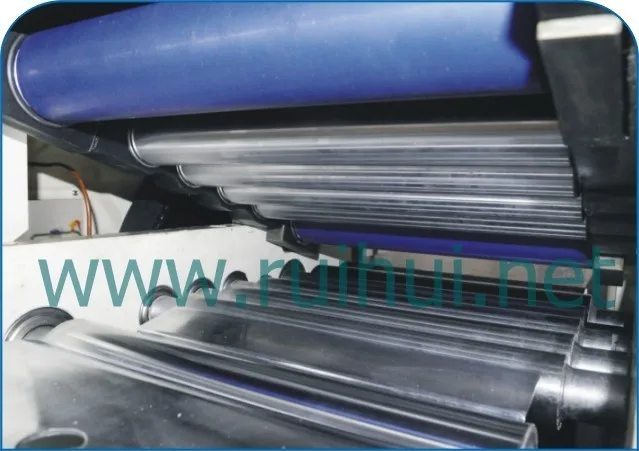

Name: Roller diameter PU plastic special treatment
Brand:RUIHUI
Original:China dongguan
Rikker duaneter PU plastic special treatment,to prevent the material has an indentation for sheet material special design.

Our Service

Pre-Sales Service

1st   We have a high level of technical research and development team;
2nd  We can provide the design and planning of the whole plant to realize the turnkey project;
3rd  our philosophy: quality is the social responsibility;

After-Sales Service

4th   our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th   We have a highly effective after-sales service team and get customer approval.

Packing & Delivery
Related Products

MAC2-300

Max.stock width:300mm
Max.stock thickness:3.2mm

91.9% Response Rate

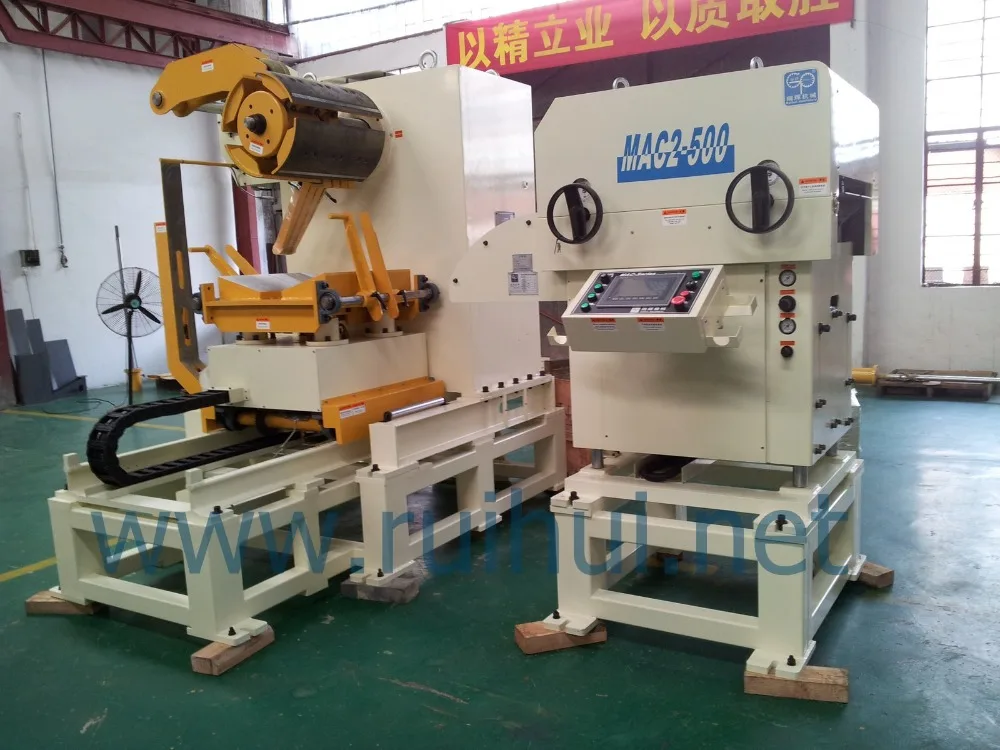

MAC2-500

Max.stock width:500mm
Max.stock thickness:3.2mm

91.7% Response Rate

MAC3-600

Max.stock width:600mm
Max.stock thickness:4.5mm

91.6% Response Rate

Company profile

RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

Customer case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
